Provides better and safer solution in high temperature, high pressure and high rotation speed working conditions.
Easy Maintenance
Seal rings replacement takes 10 minutes or less.
Significantly improves efficiency and safety, and reduces labor intensity. Easy
Flexible
The washpipe is customized to fit specific top drive or swivel by providing the make and model, or related interface information.
High Performance
Mechanical seal floating structure design, has obtained several Chinese and American patents.
The main structure is made of high strength stainless steel, the seal ring is made of patented composite ceramic material, abrasion-resistant, corrosion-resistant and bear high temperature.
Withstands 120℃ and 7,500 psi working condition.
Traditional Washpipe Maintenance Replacement
• Replace the whole assembly • 2 persons • Heavy hammering • Time required : 120 mins

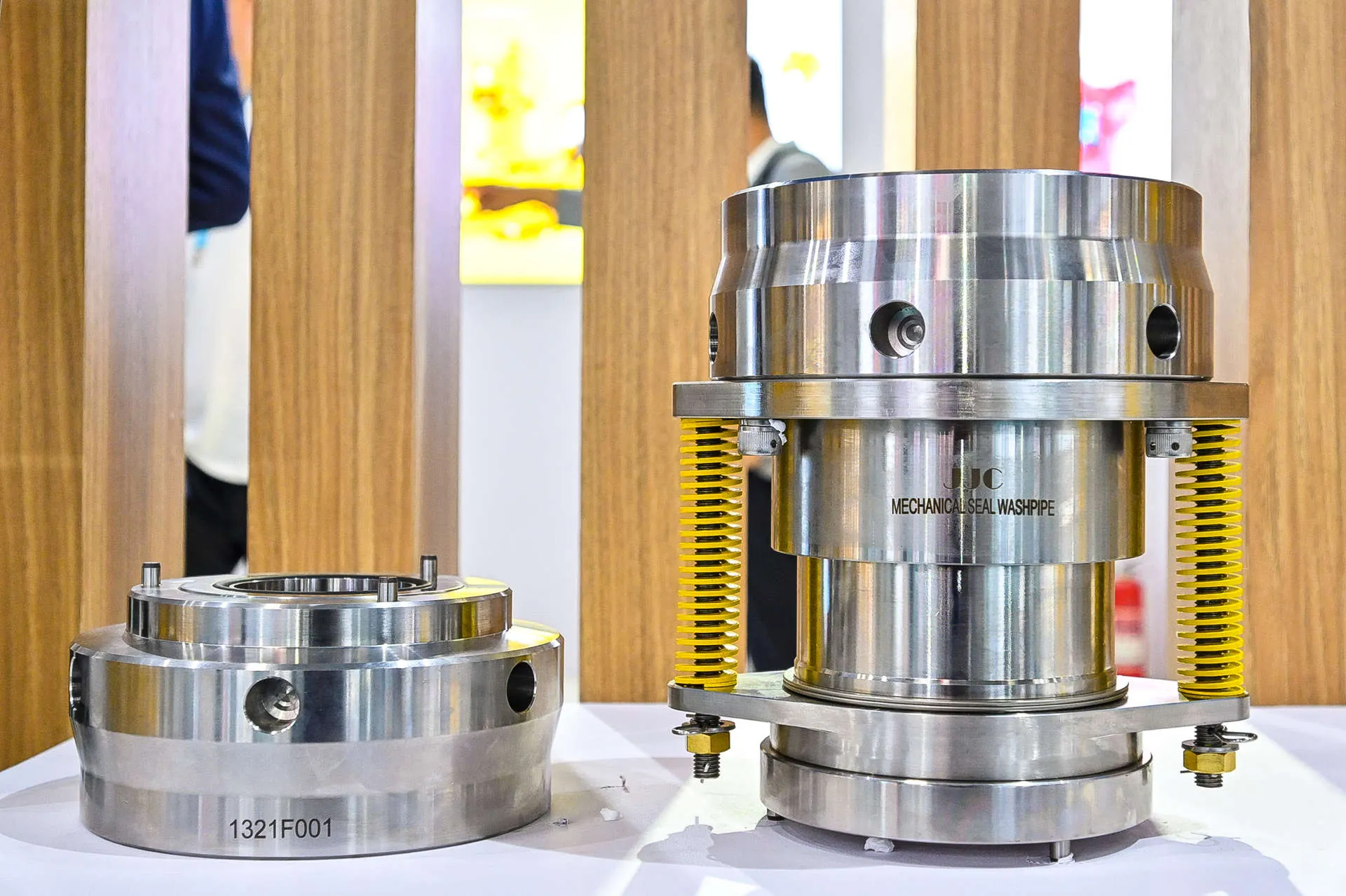

Mechanical Seal Washpipe Maintenance Replacement
• Replace the seal rings only • 1 person • Ratchet wrenches • Time required: 10 mins
TECHNICAL SPECIFICATIONS
Bore Size
3.0" ( 76.2 mm )
4.0" ( 101.6 mm )
Working Pressure
7,500 psi ( 52.5 MPa )
Drilling Fluid
Water or Oil based mud
Dimensions( H x OD )
14.5" x 9.5"( 368.3 x 241.3 mm )
14.5" x 10.5"( 368.3 x 268.0 mm )
Weight
90 lbs ( 40 kg )
110 lbs ( 50 kg )
Beijing JJC Technology Co., Ltd.
