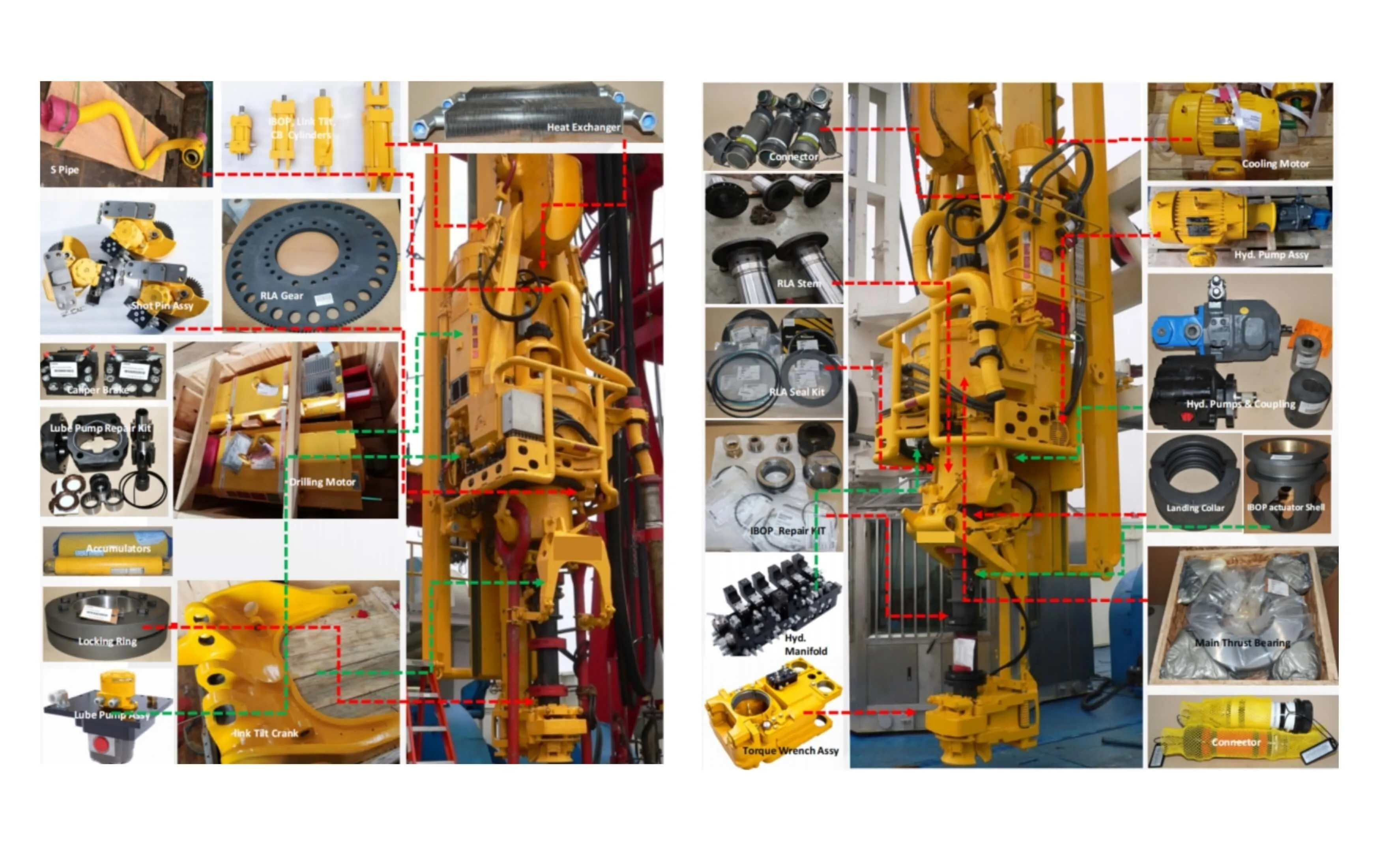

| NOV Varco 4S Top drive parts list | ||
| pos. | PN | item |
| 1 | 85678 | Leveling Cylinder Seal Kit for TDS-4S Top Actuator |
| 2 | 1000149 | Repair kit for manual regulator |
| 3 | 50004100-3 | Set of black linings for 350 t links shank diameter 3 1/2″ |
| 4 | 50004100-2 | White lining kit for 500 t links shank diameter 4 1/2″ |
| 5 | 50004100-1 | Set of green linings for 750 t links shank diameter 5 3/4″ |
| 6 | 50004133-12 | Accumulator Cylinder Precharge Pressure Test Kit Varco 50004133 |
| 7 | 20012091 | Multi-Ram block, 5″-7″, NXT complete with seals for NXT Shaffer blowout preventer |
| 8 | 20011987 | 6-5/8″ NOV/20011987 Tubing Dies Assembly with Seals for NXT Shaffer BOP |
| 9 | 56625-1.5-03 | Power cable 3×1.5 mm2 |
| 10 | 56626-07 | Power cable 7×1 mm2 |
| 11 | 703305-19G | Set of shims |
| 12 | 20017079+20 | Diaphragm repair kit |
| 13 | 9930026 | Triplex pump repair kit for air defense control station |
| 14 | 9910001 | Set of repair regulator with manual control for air defense control station |
| 15 | 385 | Repair kit for cylinder accumulator 15 gallon for air defense control station |
| 16 | 9933240 | Repair kit for pump |
| 17 | 9931510 | Repair kit for pump |
| 18 | 94764-SK | Counterweight cylinder repair kit |
| 19 | P611000038 | Mud tube assembly kit 3″ SVP assembly |
| 20 | P611000038-500 | Face seal kit 3″ |
| 21 | P611000038-501 | Set of service sealing rings 3″ |
| 22 | 30182002-502 | Key set |
| 23 | P611000038-503 | Floating carrier seal kit |
| 24 | P611000038-504 | Lower Nut Kit |
| 25 | P611000038-505 | Top Nut Kit |
| 26 | 36020 | Seal kit |
| 27 | 30155689-2 | Flow Switch 0.25 GPM for Top Actuator TDS-4S |
| 28 | 30155689-3 | Flow Switch 1.2 GPM for Top Actuator TDS-4S |
| 29 | 71847 | Rod pusher for top actuator TDS-4S |
| 30 | 109600-11 | Auxiliary fluid circuit for TDS-4S top power drive |
| 31 | 1292182 | Oil scraper for mud pump 12-P-160 |
| 32 | 1292266 | Wear-resistant disc for mud pump 12-P-160 |
| 33 | 6908040 | Steel wafer ring for mud pump 12-P-160 |
| 34 | 81788+30 | Torque wrench for Hydra Tong T4063 automatic drill tong |
| 35 | 143267+71 | Hydraulic hose 3/8″, 500 bar for Hydra Tong T4063 automatic drill tong |
| 36 | 143273+71 | Hydraulic hose 3/8″, 500 bar for Hydra Tong T4063 automatic drill tong |
| 37 | 143280+71 | Hydraulic hose 3/8″, 500 bar for Hydra Tong T4063 automatic drill tong |
| 38 | 143281+71 | Hydraulic hose 3/8″, 500 bar for Hydra Tong T4063 automatic drill tong |
| 39 | 143282+71 | Hydraulic hose 3/8″, 500 bar for Hydra Tong T4063 automatic drill tong |
| 40 | 143283+71 | Hydraulic hose 3/8″, 500 bar for Hydra Tong T4063 automatic drill tong |
| 41 | 143284+71 | Hydraulic hose 3/8″, 500 bar for Hydra Tong T4063 automatic drill tong |
| 42 | 7815673 | Pin cotter pin with ring for drawworks 1320-UDBE |
| 43 | 7000208-30 | Hex screw for drawworks 1320-UDBE |
| 44 | 2111777 | Pneumatic pump for drawworks 1320-UDBE |
| 45 | 05466650НР | Cylinder sleeve ⌀6 1/2″ for mud pump 12-P-160 |
| 46 | 2110490 | Bearing for drawworks 1320-UDBE |
| 47 | 2110288 | Spring for drawworks 1320-UDBE |
| 48 | 20026217+20 | Top seal for Shaffer 18-3/4-5/10/15Kpsi shear ram |
| 49 | 20026206+20 | Bottom seal CVX, for Shaffer 18-3/4-5/10/15Kpsi shear ram |
| 50 | 2110001 | Emergency brake cylinder for drawworks 1320-UDBE |
| 51 | 10852863-001 | Sealing element for universal preventer 18-3/4″ |
| 52 | 7401803 | Double acting valve SPM |
| 53 | 81768 | Proportional valve for Hydra Tong T4063 automatic drilling tong |
| 54 | 98826 | Hydraulic clamp block for Hydra Tong T4063 automatic drill tong |
| 55 | 3688AP06 | Air filter for cooling system of electric motors |
| 56 | 30123288 | Retaining ring for TDS-4S upper power drive |
| 57 | 123284 | Pressure pipe nut for TDS-4S top actuator |
| 58 | 30123289 | Pressure pipe 7500 psi for top actuator TDS-4S |
| 59 | 30123563 | Stuffing box for top power drive TDS-4S |
| 60 | 123585 | Top separator ring for top power drive TDS-4S |
| 61 | 30123286 | Middle separator ring for top power drive TDS-4S |
| 62 | 123287 | Lower separator ring for upper power drive TDS-4S |
| 63 | 31948/M2 | Sleeve M2 for safety valve Titan Class C |
| 64 | 32524 | Valve seat insert for safety valve Titan Class C |
| 65 | 33003-01 | Piston Rod Subassembly for Titan Class C Relief Valve |
| 66 | 32501-2 | Lower piston seal for safety valve Titan Class C |
| 67 | 702640-24-31 | Sealing ring in the gap between the sleeve and the housing for the Titan Class C safety valve |
| 68 | 702640-23-01 | Stem bushing outer seal for Titan Class C safety valve |
| 69 | 1292240 | Injection box complete with studs for mud pump 12P-160 |
| 70 | 50000650Y | Hydraulic elevator BX4-75 |
| 71 | 80375-2 | Hose assembly TW press. (H1) for TDS-4S Top Actuator |
| 72 | 34000-02-01 | Safety valve Titan Class C (flanged connections, without return connections) |
| 73 | 1292350 | Stop for mud pump 12-P-160 |
| 74 | XD110001206 | Anti-wear plate for hydraulic tong |
| 75 | XD110001207 | Anti-wear plate for hydraulic tong |
| 76 | 85195 | Cylinder |
| 77 | 203121 | High pressure hose pos.20 |
| 78 | 1292362 | Hydraulic suction boxfor mud pump 12-P-160 |
| 79 | 91762 | Tube assembly for torque wrench PH85 top drive TDS-4S |
| 80 | 91761 | Tube assembly for torque wrench PH85 top drive TDS-4S |
| 81 | 80426 | Linear length transducer W/2M |
| 82 | 31022 | Hydraulic cylinder 80/50 for HYDRATONG automatic drilling tong |
| 83 | 142392 | Hydraulic motor |
| 84 | 2110668 | Service brake caliper lever pos. 2 for Drawworks 1320-UDBE |
| 85 | 2110044 | Brake shoe pin pos. 3 for Drawworks 1320-UDBE |
| 86 | 2110484 | Emergency brake caliper lever pos. 2 for Drawworks 1320-UDBE |
| 87 | 641101902 | Case |
| 88 | 1480247 | Anti-vibration hinge 4″ |
| 89 | 96507 | Cylinder of clamping of lateral jaws of automatic drilling key |
| 90 | 55908-8-8 | Quick coupling FD45-4 for elevator BX-4-75 |
| 91 | 99461 | Cylinder of a clamp of lateral jaws of an automatic drilling key 120/80 |
| 92 | 93124 | Hydraulic cylinder 100/50 |
| 93 | 96 | Balloon accumulator for air defense control station, 207 bar, 15 gal |
| 94 | 1502062SS | Piston 6 1/2″ for mud pump 12-P-160 |
| 95 | MB64-15 | Piston 6 1/2″ for mud pump 12-P-160 |
| 96 | 19206-80-30 | Working wheel 12″ for Mission Magnum pump |
| 97 | 19123-01-30A | Pump body for Mission Magnum pump |
| 98 | 19121-70-30 | Working wheel 11″ for Mission Magnum pump |
| 99 | 19121-90-30 | Working wheel 13″ for Mission Magnum pump |
| 100 | 1480065 | Vibration motor |
| 101 | 1480228 | Locking ring |
| 102 | 1490015 | Hinge pin |
| 103 | 472492 | Oil seal |
| 104 | BRK-D270 | Rubber seal kit |
| 105 | BWS-D270 | Rear wall seal |
| 106 | 60506 | The coil of the discharge line of the pump No. 1 |
| 107 | 665002003 | Suction elbow |
| 108 | M291295396 | Chain lubrication pump |
| 109 | M291292844 | External lubrication system |
| 110 | 7802327 | Coupling |
| 111 | 1292225 | Cross with filter assembly for mud pump 12-P-160 |
| 112 | 150854 | Sliding plate |
| 113 | 33091 | Roller bearing |
| 114 | 27479 | Roller bearing |
| 115 | 94324 | Pulley |
| 116 | 92993 | Rubber bumper |
| 117 | 152540 | Hydraulic swivel |
| 118 | 26775 | Swivel ring |
| 119 | 33082 | Roller bearing |
| 120 | 152553 | Rubber buffer |
| 121 | 33089 | Spring |
| 122 | 148594 | Bearing |
| 123 | 37461 | V-ring |
| 124 | 150848 | Spring |
| 125 | 35437 | Ball bearing |
| 126 | 10197 | Retaining ring |
| 127 | 12474 | V-ring |
| 128 | 29386 | Roller bearing |
| 129 | 91971 | Bushing flange |
| 130 | 54569 | Linear Length Transducer w/AVM |
| 131 | 447-B-357 | Intermediate tank vent valve |
| 132 | 55909-8-8 | Hydraulic quick coupling, male thread FD-45 #8 |
| 133 | 979798-7-C | Manometer coupling Mini-mess M16x2 – 1/4″ BSP, o-ring, stainless steel |
| 134 | 50004133-11 | Cylinder seal kit |
| 135 | XD110001547 | Slide plate for hydraulic tong |
| 136 | XD110001194 | Slide plate for hydraulic tong |
| 137 | XD110001125 | Slide plate for hydraulic tong |
| 138 | XD110001115 | Slide plate for hydraulic tong |
| 139 | XD110000943 | Slide plate for hydraulic tong |
| 140 | 662013009 | Shaft sleeve |
| 141 | 700030711 | Hex head bolt 1/2″x2″ |
| 142 | 123582 | Mounting plate |
| 143 | 76649 | Fan suction gasket |
| 144 | 76643 | Fan shroud |
| 145 | 72396 | Duct plug |
| 146 | 140966-86-20-20 | Loop power cable |
| 147 | 30174375-400-50-220 | Engine |
| 148 | 30170945-86-20-20 | Cable control cable |
| 149 | 122705-86-1-2 | Loop hydraulic cable |
| 150 | 30157486 | Moisture separator mounting frame |
| 151 | 107590 | Air supply hose 10×25 ft. |
| 152 | 107588-20 | Hose clamp |
| 153 | 30174380 | Mounting plate |
| 154 | 30156360-L | Terminal box |
| 155 | 30174660 | Terminal box |
| 156 | 2110298 | Mandrel for removing the wear sleeve |
| 157 | 2110263 | Mandrel for installation of anti-wear seal |
| 158 | 2111575 | Drift for installation of the bushing of the rotary lever of the brake caliper |
| 159 | 2111576 | Drift for installation of the bushing of the rotary lever of the brake caliper |
| 160 | 2111573 | Drift for installation of the bushing of the rotary lever of the brake caliper |
| 161 | 2110493 | Mandrel for installation of seal |
| 162 | 2110496 | Mandrel for removal of the bushing |
| 163 | 2110659 | Hinge pin retainer plate |
| 164 | 2110497 | Gasket ring |
| 165 | 128996 | Tilt Strut Assy pos 200 for TDS-4S Top Actuator |
| 166 | 90793-Q | Drive gear for SVP electric motor TDS-4S |
| 167 | 2112458 | Disc brake assembly for drawworks 1320-UDBE |
| 168 | 123285 | Top separator ring |
| 169 | 200662-1 | Hinged jaw assembly, 8 1/2″-17″ |
| 170 | 51603-16-S | Lock pin |
| 171 | 77034 | Lifting cylinder fork pipe clamp PH85 |
| 172 | 115341 | Adapter protective plate |
| 173 | 50010-20-C5D | Hexagon bolt with cotter hole |
| 174 | 7817600-458 | O-ring |
| 175 | 642183-А | Gear Coupling Housing |
| 176 | 620967-1 | Gear coupling |
| 177 | YS-4757 | Seal for drawworks 1320-UDBE |
| 178 | 7600042 | Washer |
| 179 | 622868-3 | Adjusting gasket |
| 180 | 622868-2 | Adjusting gasket |
| 181 | 622868-1 | Adjusting gasket |
| 182 | 622868 | Adjusting gasket |
| 183 | 618947 | Outer clip |
| 184 | 612372 | Internal clip |
| 185 | 626360-А | Bearing |
| 186 | 612361-А | Roller holder |
| 187 | ZS-7080 | Bearing |
| 188 | 612738-А | Roller bearing |
| 189 | 619319-А | Switch Clutch Ring |
| 190 | 612747 | Tube seal |
| 191 | 641013 | Outer clip |
| 192 | 641019 | Load ring |
| 193 | 641157 | Internal clip |
| 194 | 641440 | Adjusting gasket |
| 195 | 645856 | Load ring |
| 196 | 645895 | Sleeve |
| 197 | 7805052 | Grease dispenser |
| 198 | 6803020 | Sleeve |
| 199 | 13381 | Bolt with hexagon head М10х30 |
| 200 | 37591 | Bolt М10х140 |
| 201 | 32969 | Locking screw M6x10 |
| 202 | 95714 | Ball bearing |
| 203 | 25606 | Bolt М5х25 |
| 204 | 25614 | Bolt М6х20 |
| 205 | 16401-6 | Dryer |
| 206 | 19122-01-30A | Pump casing |
| 207 | 30639 | Sealing ring |
| 208 | 40989 | Sealing ring |
| 209 | 717400 | Sealing ring |
| 210 | 62229 | Bearing |
| 211 | 062230 | Seal |
| 212 | 030617 | Sealing ring |
| 213 | 062276 | Seal |
| 214 | 030583 | Sealing ring |
| 215 | 040999 | Retaining ring |
| 216 | 717315 | Lower sealing ring |
| 217 | 717316 | Top sealing ring |
| 218 | 062220 | Seal |
| 219 | 062238 | Bearing |
| 220 | 030609 | Sealing ring |
| 221 | 1292292 | Irrigation system sleeve bushings, 1-1/2″x37″, assemblyfor mud pump 12-P-160 |
| 222 | 1282036 | Irrigation hose bushings, 1″x30″, assemblyfor mud pump 12-P-160 |
| 223 | 94764 | Counterweight cylinder |
| 224 | 51404-18-S | Split pin |
| 225 | 50520-C | Nut |
| 226 | 30171396 | Finger |
| 227 | 30171395 | Finger |
| 228 | 1502062XT | Piston 6 1/2″ for mud pump 12-P-160 |
| 229 | 1283191 | Gasket |
| 230 | 1292064 | Gasket |
| 231 | 1292079 | Gasket |
| 232 | 1292095 | Gasket |
| 233 | 1292096 | Gasket |
| 234 | 1292097 | Gasket |
| 235 | 1292227 | Gasket |
| 236 | 1275158 | Gasket |
| 237 | 1284106 | Gasket |
| 238 | 1292076 | Gasket |
| 239 | 2302019 | Coupling |
| 240 | 59044P08A060 | High pressure hose assembly |
| 241 | 59026P08A060 | High pressure hose assembly |
| 242 | 59026P08A012 | High pressure hose assembly |
| 243 | 59024P230008 | High pressure hose assembly |
| 244 | 59024P230021 | High pressure hose assembly |
| 245 | 59044P230020 | High pressure hose assembly |
| 246 | 58892P290069 | High pressure hose assembly |
| 247 | 58592P230105 | High pressure hose assembly |
| 248 | 58572P230105 | High pressure hose assembly |
| 249 | 150026 | Mandrel |
| 250 | 150028 | Blade |
| 251 | 150030 | Spring |
| 252 | 150027 | Blade holder |
| 253 | 23230 | Screw |
| 254 | 149267 | Blade setting tool |
| 255 | 167200 | Locking plate 95x15x1.5 |
| 256 | 147054 | Bolt М8х20 A4 |
| 257 | 159131 | Locking plate 78x15x1.5 |
| 258 | 185908 | Stop plate |
| 259 | 165074 | Stop plate |
| 260 | 147051 | Shaft 80х96 |
| 261 | 147236 | Shaft 60×112 |
| 262 | 185841 | Spherical bearing CB80 |
| 263 | 147237 | Sleeve 60/75х100 |
| 264 | 147053 | Rod rod 120/CH90x137.5(87.5) M53x3 |
| 265 | XD110002117 | Stabilizer bolt |
| 266 | 34259 | Locknut М36 |
| 267 | 26652 | Nut М36 HDG |
| 268 | 26565 | Washer М36 VG |
| 269 | XD110001555 | Stabilizer plug |
| 270 | 95702 | Disc spring |
| 271 | XD110001688 | Anti-wear plate |
| 272 | XD110001694 | Stove |
| 273 | 25143 | Bolt М12х30 mm |
| 274 | 99707 | Bushing AMPCO 18 |
| 275 | 27084 | Bolt М10х40 mm |
| 276 | 25141 | Bolt М12х20 mm |
| 277 | XD110001691 | Stop plate |
| 278 | XD110001286 | Retaining bolt |
| 279 | XD110001692 | Retaining bolt |
| 280 | XD110001721 | Stop plate |
| 281 | XD110001722 | Cylinder bolt |
| 282 | XD110001689 | Stop plate |
| 283 | 19006 | Bolt M10x16 mm |
| 284 | 25673 | Bolt М16х70 mm |
| 285 | XD110001784 | Clamp |
| 286 | 215807 | Cylinder cover lower cylinder, 120/KM60x135, M125x2 |
| 287 | 30182002-26 | Face seal pin |
| 288 | 50208-B | Nut 1/2″-13 |
| 289 | 17469489-001 | Sealing element for universal preventer 18-3/4″ |
| 290 | 83542 | Pressure regulator |
| 291 | 87234 | Pressure regulator assembly |
| 292 | 87204 | Shuttle valve |
| 293 | 1292903 | Crankshaft assembly with gear for mud pump 12-Р-160 |
